Home / Valves, Joints & Compensator / Butterfly Valves

Butterfly Valves

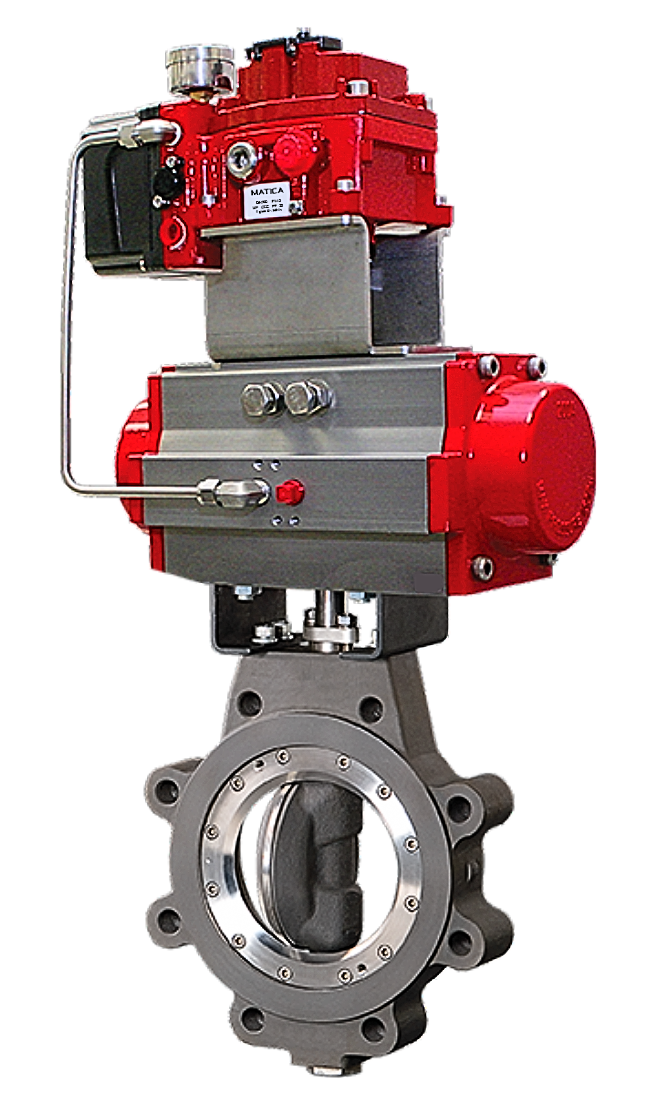

BV600 series by MATICA
BV600 series by MATICA

BV600 series by MATICA

The Double Offset Advantage. Uncompromising Sealing, Effortless Control. Available through MATICA dealer LINDER, the BV600 Series redefines reliability. Its core innovation – the double eccentric shaft – eliminates friction at the core, delivering bidirectional bubble-tight sealing and dramatic reduction in seat wear. This translates to lower lifecycle costs and superior performance with minimal operating torque. […]
Design
Double Offset High Performance Butterfly Valves
Nominal sizes
DN 50 – 1500 mm
Pressure rating
PN6 bar, PN10 bar, PN16 bar, PN25 bar, PN40 bar, PN63 bar, PN100 bar, Class 150, Class 300, Class 600
Working temperature
+550 °C (depending on materials used)
Material
Cast steel, Stainless steel
Body type
Wafer, Lug, Flanged
Read More
BV700 series by MATICA
BV700 series by MATICA

BV700 series by MATICA

Precision in Every Degree. Reliability in Every Cycle. As a MATICA dealer, LINDER offers the MATICA BV700 Triple Eccentric Disc Valve. Its advanced triple-offset geometry ensures frictionless operation, minimal wear, and bi-directional bubble-tight shut-off for critical processes. Applications Metallurgy, High-Purity & Aggressive Media, HVAC, Shipbuilding, District Heating Systems.
Design
Triple Eccentric Butterfly Valves
Nominal sizes
DN 50 – 1200 mm
Pressure rating
PN6 bar, PN10 bar, PN16 bar, PN25 bar, PN40 bar, PN63 bar, PN100 bar, Class 150, Class 300, Class 600
Working temperature
+600 °C (depending on materials used)
Material
Cast steel, Stainless steel
Body type
Wafer, Lug, Flanged, Socket weld
Read More
TW20 series by WEY Sistag
TW20 series by WEY Sistag

TW20 series by WEY Sistag

The TW20: Where Standard Compliance Meets Unmatched Value. Through our partnership with Swiss precision manufacturer WEY, LINDER presents the TW20 butterfly valve. We engineered it to ISO PN10/16 not just to meet expectations, but to exceed them. Its advanced manufacturing and material selection deliver unwavering reliability, giving you a decisive advantage in both performance and […]
Design
Centric butterfly valve
Nominal sizes
DN 25 – 1200 mm
Pressure rating
PN 0 – 25 bar
Material
Stainless steel, Cast and Ductile iron, Carbon steel, Cast tin-bronze, aluminum-bronze, aluminium, Special material
Flange drilling
PN10, PN16, ANSI Class 150
Face to face dimension
EN 558 series 20
Case shape
Wafer type body
Read More
TL20 series by WEY Sistag
TL20 series by WEY Sistag

TL20 series by WEY Sistag

The One-Valve Solution. Economize Without Compromise.  LINDER, as an official dealer of the Swiss manufacturer WEY, presents the TL20 butterfly valve. This versatile lug-style valve is engineered as a direct and cost-efficient replacement for more complex double flanged valves, offering unparalleled flexibility for isolating pipeline sections in general industrial applications. Working media Mining. Chemical and […]
Design
Centric butterfly valve
Nominal sizes
DN 25 – 1000 mm
Pressure rating
PN 0 – 25 bar
Material
Stainless steel, Cast and Ductile iron, Carbon steel, Cast tin-bronze, aluminum-bronze, aluminium, Special material
Flange drilling
PN10, PN16
Face to face dimension
EN 558 series 20
Case shape
Lug type body
Read More
TF20 series by WEY Sistag
TF20 series by WEY Sistag

TF20 series by WEY Sistag

Compact Design. Maximum Performance. Discover the TF20.  Get the Swiss-engineered TF20 butterfly valve through LINDER, an authorized dealer for WEY. Its short face-to-face double flange design is tailored for the most common standards (DIN, ANSI, BS), delivering superior strength and efficiency in a compact form. It is the ideal solution for applications where space and […]
Design
Centric butterfly valve
Nominal sizes
DN 80 – 2500 mm
Pressure rating
PN 0 – 25 bar
Material
Stainless steel, Cast and Ductile iron, Carbon steel, Cast tin-bronze, aluminum-bronze, aluminium, Special material
Flange drilling
PN10, PN16, PN25, ANSI Class 150
Face to face dimension
EN 558 series 20
Case shape
Double flange body
Read More
TF13 series by WEY Sistag
TF13 series by WEY Sistag

TF13 series by WEY Sistag

Engineered for Endurance. Designed for Demands. Discover the TF13 butterfly valve from LINDER, your dealer for Swiss quality by WEY. Built with a wide face-to-face double flange and exceptional strength, the TF13 model is designed to excel where others fail. It is the definitive choice for critical applications, ensuring reliability at the line end and […]
Design
Centric butterfly valve
Nominal sizes
DN 40 – 1200 mm
Pressure rating
PN 0 – 16 bar
Material
Ductile iron
Flange drilling
PN10, PN16, ANSI Class 150
Face to face dimension
EN 558 series 13
Case shape
Double flange body
Read More

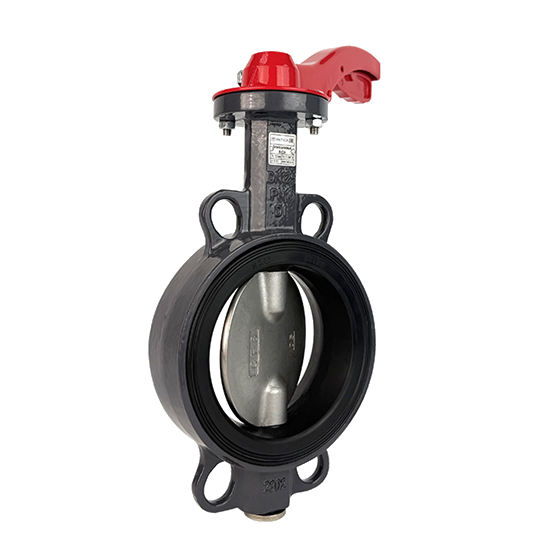

BV200 series by MATICA
BV200 series by MATICA

BV200 series by MATICA

Ideal for diverse media, the MATICA BV200 butterfly valve provides robust performance in demanding conditions. Its split-body design allows for easy maintenance and is available in various materials and seals for a custom fit. Working media Potable and Waste water, Hot industrial water, Heating water, Sea water, Chemicals, Gas & Oil, Oil derivates, Loose materials, […]
Design
Centric butterfly valve
Nominal sizes
DN 25 – 2000 mm
Pressure rating
PN 0 – 16 bar
Flange drilling
PN 10/16
Working temperature
-40 °C / +210 °C
Material
Cact iron, Ductile iron, Cast steel, Stainless steel
Body type
Wafer, Lug, Flanged type U, Flanged type
Read More
