Master Extreme Pressure: Knife Gate Valve HD Series by WEY SISTAG from LİNDER in Turkey

In the demanding landscape of Turkish industry, where processes face abrasive, solid-laden media under extreme pressure, conventional valve solutions are a liability. Premature failure, unplanned downtime, and safety risks are the costly consequences. As the official dealer and certified technical partner of WEY SISTAG in Turkey, LİNDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ delivers the definitive engineering answer: the High-Performance Knife Gate Valve HD Series. Engineered in Switzerland to dominate severe-service conditions, this valve withstands pressures up to a remarkable 100 bar while guaranteeing absolute shut-off, operational safety, and long-term reliability for your most critical applications.

LİNDER transcends the role of a mere supplier. We provide comprehensive, engineered flow control solutions, underpinned by deep local technical expertise, strategic inventory, and an unwavering commitment to maximizing plant uptime, efficiency, and safety across the Turkish industrial sector—from mining in the Anatolian plateau to chemical plants in Izmir and wastewater treatment facilities in Istanbul.

Unrivaled Advantages of the High-Pressure HD Series Knife Gate Valve

The WEY SISTAG HD Series represents a paradigm shift in valve technology for high-pressure abrasive applications. It masterfully combines the superior cutting and shearing action of a knife gate valve with the structural integrity required for ultra-high-pressure systems, setting a new benchmark for durability and performance.

Engineered for Unmatched High-Pressure Endurance

Specifically designed for a pressure range up to 100 bar (PN100), this capability is exceptional within the knife gate valve market. It establishes the HD Series as the undisputed choice for severe service in Turkish mining, high-pressure slurry transport, advanced wastewater treatment, and power generation, where system integrity is non-negotiable.

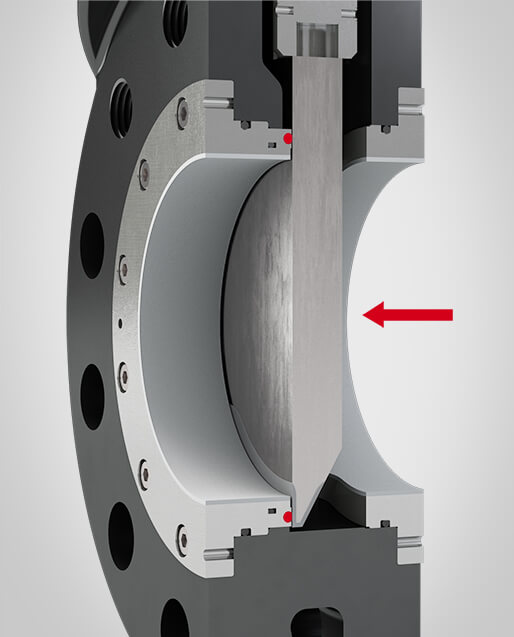

Intelligent, Pressure-Energized Self-Sealing

Featuring an ingenious patented design, the valve utilizes in-line system pressure to activate an automatic, force-amplified seal. The sealing integrity increases proportionally with the process pressure, ensuring zero leakage and maximum process safety even under peak operating loads and pressure surges.

Flushable & Airtight Bonnet Design for Maximum Safety

The specialized bonnet construction allows for effective on-line flushing to remove accumulated solids, preventing jamming and seal damage. Critically, it maintains a 100% airtight seal during this process, ensuring absolute operator safety and environmental protection against hazardous media.

Extreme Robustness for Long-Term Reliability

Constructed with a heavy-duty 4-post topwork and a reinforced body, the HD series is built to withstand maximum mechanical stress, high cycle counts, and the most abrasive environments. This robust design translates into exceptional service life, minimized maintenance, and a reduced total cost of ownership for Turkish industrial operators.

Seamless High-Pressure System Integration

Designed for direct and reliable integration into critical infrastructure. Flanges are pre-drilled to comply with stringent international standards including PN40, PN63, PN100, and ANSI Class 600, facilitating straightforward installation, retrofitting, and replacement within existing Turkish plant piping systems.

Superior Defense Against Corrosion & Abrasion

Available in premium materials such as Stainless Steel (1.4408) and Cast Steel (A216 WCB). Critical wear components are offered with a hard-chromed gate for extreme abrasion resistance. Furthermore, a robust 2-component epoxy-polyurethane coating provides ultimate corrosion protection against harsh chemical and coastal marine environments prevalent in Turkey.

Technical Specifications: WEY SISTAG HD Series Knife Gate Valve

• Primary Applications: Mining & Mineral Processing, High-Pressure Slurry Transport, Wastewater Treatment Plants (WWTP), Power Generation, Chemical & Petrochemical Processing.
• Nominal Diameter (DN): 80 mm – 400 mm
• Pressure Rating: PN 0 – 100 bar
• Flange Standards: PN40, PN63, PN100, ANSI Class 600
• Face-to-Face: Special Length (Customizable to project requirements)
• Key Materials: Body (Cast Steel A216 WCB / Stainless Steel 1.4408), Gate (Stainless Steel with Hard-Chrome Option), Primary Seal (High-Grade PTFE Compound).

Why Choose LİNDER as Your WEY SISTAG Partner in Turkey?

Selecting LİNDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ as your gateway to WEY SISTAG technology provides a decisive strategic and operational advantage for your Turkish facilities.

Expert Guidance for Severe Service Applications

Our specialized engineering team offers in-depth consultancy to navigate complex abrasive, high-pressure, and corrosive scenarios. We ensure optimal valve selection, precise material specification, and correct configuration for your specific duty, mitigating risk from the design phase.

Guaranteed Performance & Enhanced System Safety

We supply valves engineered for fail-safe critical isolation. This commitment protects your personnel, minimizes environmental risk, and safeguards valuable downstream equipment from catastrophic failure, supporting compliance with Turkish industrial safety regulations.

Complete Actuation & Automation Integration

LİNDER provides a full spectrum of actuation solutions—from manual bevel gear operators to pneumatic, hydraulic, and electric actuators—ensuring reliable, precise, and automated control for your high-pressure processes. We deliver a complete, tested package.

Local Responsiveness Meets Global Engineering Excellence

Benefit from LİNDER’s agile local support, extensive market knowledge, and readily available inventory across Turkey, combined with the proven, world-class engineering heritage and quality of WEY SISTAG from Switzerland.

Optimize Your High-Pressure Industrial Processes in Turkey

Do not let pressure limitations or abrasive media compromise your operational integrity, safety, or profitability. Elevate your industrial capabilities with the definitive high-pressure valve solution, backed by local expertise.

Contact LİNDER in Turkey today for a detailed technical consultation, a product demonstration, or to request a competitive quotation for the heavy-duty Knife Gate Valve HD Series by WEY SISTAG.
