The WEY VN Series: Unmatched Value and Reliability.
Available through LINDER, the official dealer for Swiss manufacturer WEY, the VN Series knife gate valve delivers core performance at an optimal cost. This semi-lug design guarantees 100% bidirectional bubble-tight shutoff and exceptional operational safety, offering the perfect balance of low investment and minimal maintenance for your most common applications.

Application areas
Biogas plants, Mining, Chemical and petrochemical industries, Infrastructure, Food and beverage, Pulp and paper industry, Waste water treatment plants, Water treatment

Characteristics VN series

Nominal sizes
DN 50 – 1400 mm
Pressure rating
PN 0 – 10 bar
Material
Stainless steel, Cast iron, Special material
Flange drilling
PN10, BS10-D, BS10-E, AS2129-D, AS2129-E
Face to face dimension
EN 558 series 20
Handwheel
Handwheel
Manual lever
Manual lever
Bevel gear
Bevel gear
Pneumatic cylinder
Pneumatic cylinder
Hydraulic cylinder
Hydraulic cylinder
Electric actuator
Electric actuator

Details

Detail image

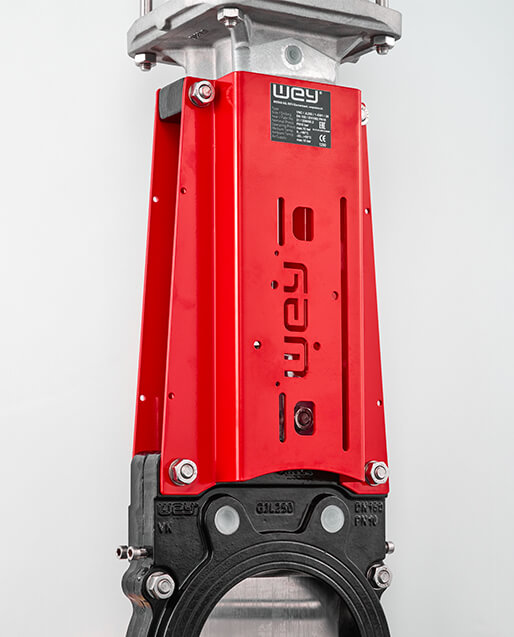

The robust metal yoke enables the optimal, simple assembly of mechanical or inductive limit switches. The yoke can be removed from one side. This makes it easier to access the mechanical parts.
Detail image
With its optimized gate geometry, accumulated media is pushed out of the gate guide and flushed out into the bore by the increased flow.
Detail image
A unique transverse seal, consisting of a transverse seal profile and packing compound, makes the body bubble-tight towards the atmosphere.
Detail image
The transverse seal can be repacked at any time and under full pressure using the lateral packing screws.
Detail image
A mechanically retained round cord seal creates a bubble-tight shut off on the gate edge.
Detail image
The gate is mechanically guided over the full stroke.
Detail image
In the closed end position, the gate is also mechanically supported.
Detail image
The add-on Weyotine cutter-pack can be used to cut long-fiber media, preventing jamming and blockages.

About VN series by WEY Sistag

WEY SISTAG VN Knife Gate Valves: Optimal Balance of Price and Reliability for Standard Industrial Applications

Your Trusted Source for WEY SISTAG Valves in Turkey

In the demanding landscape of Turkish industry, selecting the right flow control equipment is a critical decision that impacts operational efficiency, safety, and profitability. LİNDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ stands as the authorized dealer and technical partner for WEY SISTAG across Turkey. We bridge the gap between Swiss precision engineering and the robust needs of local industries, providing not just valves, but comprehensive, engineered solutions backed by unparalleled local support and expertise.

The Engineering Challenge: Reliability Versus Cost in Standard Applications

Plant managers and project engineers are consistently faced with a pivotal dilemma: choosing between premium, over-engineered solutions for extreme conditions and cost-effective alternatives that may compromise on predictable performance and longevity. For the vast majority of standard applications—in slurry handling, wastewater treatment, pulp & paper, and general industrial processes—a clear need exists for a valve that delivers uncompromising shut-off integrity, ease of maintenance, and durable construction, without the unnecessary cost burden of features designed for more severe service.

Closing the Market Gap with Targeted Engineering

The WEY SISTAG VN Series Knife Gate Valve is engineered specifically to resolve this conflict. It represents a paradigm of practical expediency, where every design element is optimized to deliver maximum value, reliability, and operational safety for standard-duty applications. This valve fills the critical market gap, offering engineered quality that surpasses generic alternatives, while maintaining a highly competitive total cost of ownership (TCO).

Engineered Superiority: Deconstructing the WEY SISTAG VN Series Advantage

The VN series is not merely a product; it is a testament to focused innovation. Its design philosophy eliminates weaknesses common in lower-tier valves while avoiding the complexity and cost of over-engineering.

Robust Semi-Lug Body Design

Constructed from high-strength cast iron, the semi-lug body provides exceptional resistance to pipeline stresses and mechanical vibration. This design ingeniously combines the installation convenience of a wafer-style valve with the structural integrity and bolt-through security of a lug-style valve. It allows for easy installation and removal between two flanges without disassembling adjacent pipeline sections, drastically reducing maintenance downtime and labor costs.

Guaranteed Bubble-Tight Shut-Off, Bidirectional

At the core of its performance is a guarantee of 100% bubble-tight sealing across its entire pressure range. This is achieved through precision-machined seating surfaces and advanced, resilient elastomer seals (available in EPDM, NBR, Viton, and others). The seal ensures perfect, uniform contact around the entire perimeter of the knife gate, even when handling media with suspended solids or mild abrasives, providing peace of mind and process integrity.

Maintenance-Optimized for Lifecycle Efficiency

WEY SISTAG engineers have prioritized serviceability. Critical wear components, such as the seal and packing, can be replaced quickly and efficiently without requiring specialized tools or removing the valve body from the line. This user-centric design philosophy minimizes mean time to repair (MTTR), extends the valve’s service life indefinitely, and transforms it from a disposable component into a maintainable asset, significantly reducing long-term operational expenditure.

Competitive Edge: Why WEY SISTAG VN Outperforms Alternatives

Choosing the VN series is a strategic decision that yields tangible advantages over both generic competitors and inappropriately specified premium valves.

Superior Total Cost of Ownership (TCO)

While the initial purchase price is competitive, the true value emerges over the valve’s lifecycle. Exceptional reliability prevents costly unplanned shutdowns. The maintainable design allows for inexpensive seal replacement instead of full valve substitution. This combination results in a TCO that is consistently lower than that of cheaper, non-repairable valves that fail more frequently.

Predictable Performance Versus Operational Risk

Many low-cost valves come with performance uncertainties—unverified sealing claims, undocumented pressure ratings, and variable material quality. Every WEY SISTAG VN valve is a product of rigorous Swiss manufacturing standards and quality control, delivering predictable, certified performance that engineers can specify with confidence, thereby mitigating risk in the technological process.

Unmatched Versatility and Project Readiness

The semi-lug design makes the VN series the ideal choice for both greenfield projects and system retrofits. Its compatibility with standard flange configurations eliminates the need for special adapters or piping modifications, accelerating project timelines and simplifying inventory management for maintenance departments.

Strategic Partnership with LİNDER: Beyond the Transaction

Selecting LİNDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ as your supplier for WEY SISTAG means investing in a partnership. We provide:

  • Technical Application Engineering: Our experts assist in selecting the optimal valve series, material, and trim for your specific media and operating conditions.
  • Local Inventory & Logistics: We ensure timely availability of valves and spare parts across Turkey, minimizing your downtime risk.
  • After-Sales & Service Support: Our commitment extends far beyond delivery, offering installation guidance, maintenance training, and rapid technical support.
  • Certified Quality Assurance: As the official dealer, we guarantee that every valve is an authentic WEY SISTAG product, backed by full manufacturer warranties and certifications.

Conclusion: The Definitive Choice for Calculated Efficiency

The WEY SISTAG VN Knife Gate Valve series represents the zenith of balanced engineering for standard applications. It delivers the operational security, sealing integrity, and durable construction associated with top-tier brands, while consciously optimizing cost for its target duty. It is the rational choice that satisfies engineering requisites for safety and reliability, aligns with financial objectives for cost control, and supports operational teams with its service-friendly design. For Turkish industries seeking to optimize their processes without compromise, the solution is clear.
