Steam Traps - Linder

ST100 series by MATICA

Total Discharge. Ultimate Reliability. Demand superior steam trap performance. The MATICA ST100 Horizontal Inverted Bucket Trap ensures complete drainage of condensate and air for optimal equipment operation. Available from LINDER, your MATICA dealer, this proven mechanical trap (DN15-DN25, PN16) handles the toughest conditions with unwavering reliability. The definitive choice for your steam system. Applications Heat […]

Design

Inverted Bucket Steam Trap

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN16 bar, Class 150

Differential pressure

ΔPMX 5 bar, 9 bar, 14 bar, 17 bar

Maximum operating temperature

TMO 300 ºC

Discharge Capacities

≤ 440 kg/h

Connection

Threaded, Flanged

Material

Cast Iron

ST100.1 series by MATICA

MATICA ST100.1. Reliability Engineered. Performance Delivered. ST100.1 Horizontal Inverted Bucket Steam Trap. This robust mechanical trap ensures efficient removal of condensate and air from all your steam systems, preventing water hammer and optimizing heat transfer. Built for enduring performance. Applications Heat Exchangers, Heater Units, High Pressure Applications, Vulcanization Devices, Laundry Equipment, Main Fuel Tank Heaters, Steam and […]

Design

Inverted Bucket Steam Trap

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN16 bar, Class 150

Differential pressure

ΔPMX 5 bar, 9 bar, 14 bar, 17 bar

Maximum operating temperature

TMO 300 ºC

Discharge Capacities

≤ 960 kg/h

Connection

Threaded, Flanged

Material

Cast Iron

ST100.2 series by MATICA

Engineered for Efficiency. Supplied by LINDER. LINDER, as an authorized dealer of MATICA, offers the Horizontal Inverted Bucket Steam Trap model ST100.2. This reliable mechanical trap ensures continuous drainage of condensate and incondensable gases for virtually all steam equipment. Its robust inverted bucket mechanism guarantees reliable operation across DN25 to DN50 lines at pressures up […]

Design

Inverted Bucket Steam Trap

Nominal sizes

DN 25 – 50 mm

Pressure rating

PN16 bar, Class 150

Differential pressure

ΔPMX 6 bar, 9 bar, 12 bar, 17 bar

Maximum operating temperature

TMO 300 ºC

Discharge Capacities

≤ 1800 kg/h

Connection

Threaded, Flanged

Material

Cast Iron

ST100.3 series by MATICA

Engineered for Peak Performance. The Horizontal Inverted Bucket Steam Trap MATICA ST100.3 is the mechanical workhorse for reliable condensate drainage. It ensures efficient removal of condensate, air, and non-condensable gases from virtually any steam-using equipment, thanks to its robust inverted bucket mechanism. Available in sizes DN15 to DN25 and rated for PN16/40, it’s built for […]

Design

Inverted Bucket Steam Trap

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN16 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 9 bar,17 bar, 28 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 500 kg/h

Connection

Threaded, Flanged

Material

Carbon steel, Stainless steel

ST100.4 series by MATICA

Unrivaled Drainage. Engineered by MATICA. Demand the proven reliability of the MATICA ST100.4 Horizontal Inverted Bucket Steam Trap. This is not just a drain; it’s a precision system for evacuating condensate and non-condensables with maximum efficiency and minimal steam loss. Its robust design (DN15-DN25, PN16/40) guarantees performance where it counts. Choose the standard for steam […]

Design

Inverted Bucket Steam Trap

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN16 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 4 bar,12 bar, 28 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 880 kg/h

Connection

Threaded, Flanged

Material

Carbon steel, Stainless steel

ST100.5 series by MATICA

Demand Peak Steam System Performance. Choose the MATICA ST100. LINDER, your MATICA dealer, provides the definitive solution for condensate drainage: the Horizontal Inverted Bucket Trap MATICA ST100.5/ST100.7. This trap doesn’t just remove condensate; it aggressively purges air and non-condensable gases, maximizing heat transfer and preventing damage. Built for durability across key sizes (DN25-DN50, PN16/40). Applications […]

Design

Inverted Bucket Steam Trap

Nominal sizes

DN 25 – 50 mm

Pressure rating

PN16 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 9 bar, 14 bar, 17 bar, 28 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 1770 kg/h

Connection

Threaded, Flanged

Material

Carbon steel, Stainless steel

ST100.6 series by MATICA

The Reliable Workhorse for Your Steam System. LINDER, as an authorized dealer of MATICA, offers the ST100.6 Horizontal Inverted Bucket Steam Trap. This robust mechanical trap provides reliable and efficient drainage of condensate and non-condensable gases for virtually all types of steam equipment. Its simple, dependable inverted bucket mechanism ensures optimal steam system performance. Available […]

Design

Inverted Bucket Steam Trap

Nominal sizes

DN 40 – 80 mm

Pressure rating

PN16 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 4 bar, 9 bar, 17 bar, 28 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 3000 kg/h

Connection

Threaded, Flanged

Material

Carbon steel, Stainless steel

ST100.7 series by MATICA

Uncompromising Performance for Your Steam System. The MATICA ST100.7 Horizontal Inverted Bucket Steam Trap delivers uncompromising reliability for critical steam drainage. Its robust mechanical design ensures efficient removal of condensate, air, and non-condensable gases from virtually all types of steam-using equipment, protecting your system and optimizing energy use. Engineered for durability with a unique pilot-assisted […]

Design

Inverted Bucket Steam Trap

Nominal sizes

DN 40 – 100 mm

Pressure rating

PN16 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 9 bar, 12 bar, 17 bar, 28 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 4800 kg/h

Connection

Threaded, Flanged

Material

Carbon steel, Stainless steel

ST100.8 series by MATICA

Engineered Reliability. Automatic Drainage. Available through the official dealer LINDER. Engineered for reliable and automatic drainage of condensate and non-condensable gases from virtually any steam equipment. Key features: DN15-DN50, pressure ratings up to PN160. The robust inverted bucket mechanism ensures consistent operation and long service life. Applications Heat Exchangers, Heater Units, High Pressure Applications, Vulcanization […]

Design

Inverted Bucket Steam Trap

Nominal sizes

DN 15 – 50 mm

Pressure rating

PN64 bar, PN100 bar, PN160 bar, Class 600, Class 900

Differential pressure

ΔPMX 20 bar, 40 bar, 64 bar

Maximum operating temperature

TMO 550 ºC

Discharge Capacities

DN15-25 ≤ 440 kg/h, DN32-50 ≤ 730 kg/h

Connection

Socket weld, Flanged

Material

Alloy Steel, Stainless Steel

ST100.9 series by MATICA

Unmatched Reliability in Every Drop. LINDER, as an authorized MATICA dealer, presents the ST100.9 Horizontal Inverted Bucket Steam Trap. Engineered for maximum durability and consistent performance, it ensures efficient removal of condensate and non-condensable gases from all types of steam equipment. Built to last with high-pressure tolerance (PN100/160) and sizes DN32-DN50. Applications Heat Exchangers, Heater […]

Design

Inverted Bucket Steam Trap

Nominal sizes

DN 32 – 50 mm

Pressure rating

PN100 bar, PN160 bar, Class 600, Class 900

Differential pressure

ΔPMX 25 bar, 50 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 4200 kg/h

Connection

Socket weld, Flanged

Material

Alloy Steel, Stainless Steel

ST100.10 series by MATICA

The Uncompromising Standard for Steam Drainage. Choose the definitive solution for steam system integrity — the MATICA ST100.10 Vertical Inverted Bucket Trap. Its superior mechanical action doesn’t just remove condensate; it actively purges air and non-condensable gases, setting the benchmark for equipment protection and energy savings. As the authorized MATICA dealer, LINDER provides this industry-leading […]

Design

Inverted Bucket Steam Trap

Nominal sizes

DN 32 – 50 mm

Pressure rating

PN100 bar, PN160 bar, Class 600, Class 900

Differential pressure

ΔPMX 80 bar, 100 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 4500 kg/h

Connection

Socket weld, Flanged

Material

Alloy Steel, Stainless Steel

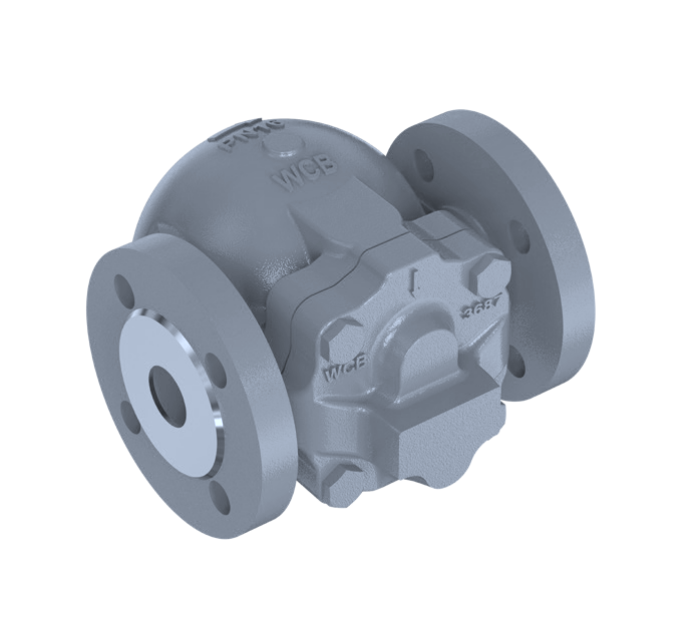

ST200 series by MATICA

Discharge Condensate. Preserve Energy. Maximize your system’s performance with the MATICA ST200, available from dealer LINDER. Its thermostatic-pilot and float mechanism ensures fast and efficient condensate discharge, protecting your steam assets. Applications Heat exchangers, Heating batteries, Tanks, Pans, Drying cylinders, Ovens

Design

Low Capacity Ball Float Steam Trap

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN16 bar, PN25 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 4,5 bar, 10 bar, 14 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

DN15-20 ≤ 550 kg/h, DN25 ≤ 1300 kg/h, ≤ 2200 kg/h model HC.

Connection

Threaded, Flanged

Material

Cast Iron, Carbon steel, Stainless steel

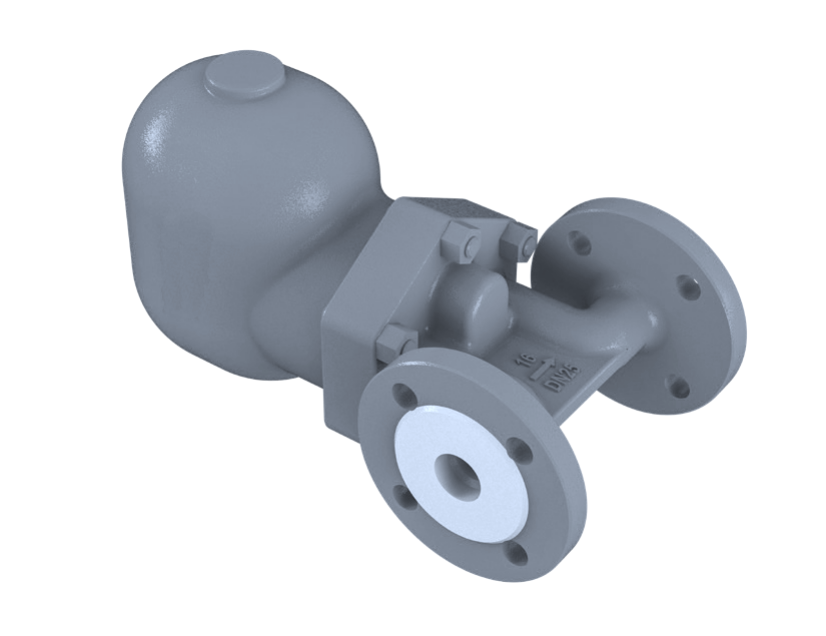

ST300 series by MATICA

Uncompromising Protection. Available from LINDER. Demand reliability for your critical systems. Offered by dealer LINDER, the MATICA ST300 Float Trap ensures continuous condensate discharge in medium-flow applications. Withstand pressures up to 40 bar and temperatures to +400°C. It’s your direct defense against costly downtime and equipment damage. Applications Heat exchangers, Heating batteries, Tanks, Pans, Drying […]

Design

Medium Capacity Ball Float Steam Trap

Nominal sizes

DN 15 – 50 mm

Pressure rating

PN16 bar, PN25 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 4,5 bar, 10 bar, 14 bar, 32 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

DN15-25 ≤ 2400 kg/h, DN32-50 ≤ 3600 kg/h

Connection

Threaded, Flanged

Material

Cast Iron, Carbon steel, Stainless steel

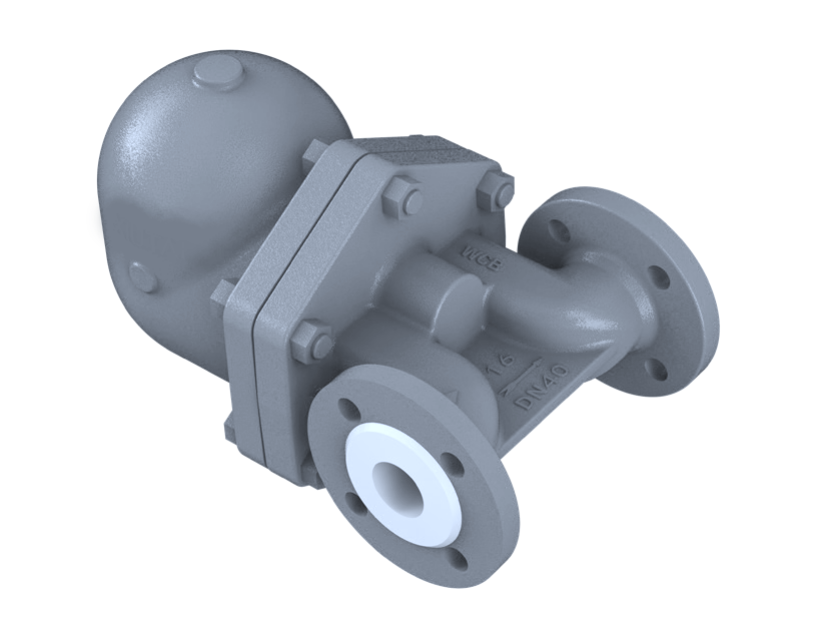

ST400 series by MATICA

Unmatched Protection for Critical Steam Systems. Guard your steam assets with the MATICA ST400 High Capacity Ball Float Steam Trap, available through dealer LINDER. This model is your direct defense against energy waste and destructive water hammer. Automatically discharging condensate under pressures up to 40 bar, it guarantees operational reliability, extended equipment lifespan, and sustained […]

Design

High Capacity Ball Float Steam Trap

Nominal sizes

DN 32 – 50 mm

Pressure rating

PN16 bar, PN25 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 4,5 bar, 10 bar, 14 bar, 32 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 22000 kg/h

Connection

Flanged

Material

Cast Iron, Carbon steel, Stainless steel

ST400.1 series by MATICA

Engineered for Efficiency. LINDER, as an authorized MATICA dealer, offers the high-capacity ST400.1 Ball Float Steam Trap. This model is designed for reliable, continuous condensate discharge at pressures up to 40 bar and temperatures up to 400°C, ensuring maximum thermal efficiency and protection against water hammer for industrial steam systems. Applications Heat exchangers, Heating batteries, […]

Design

High Capacity Ball Float Steam Trap

Nominal sizes

DN 32 – 100 mm

Pressure rating

PN16 bar, PN25 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 10 bar, 32 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 18900 kg/h

Connection

Flanged

Material

Carbon steel, Stainless steel

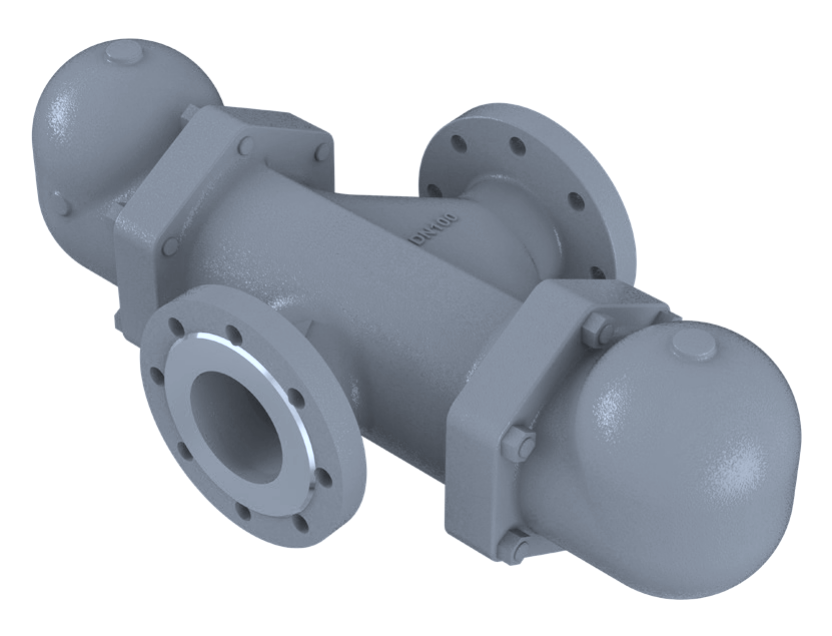

ST400.2 series by MATICA

High-Capacity Champion for Extreme Conditions. Meet the heavy-duty demands of your process with the MATICA ST400.2 High Capacity Ball Float Trap. Engineered to operate at extremes (40 bar, 400°C), this two-chamber trap delivers superior performance in heat exchangers, drying cylinders, and industrial boilers, ensuring peak system efficiency and reliability. Get this powerhouse model from the […]

Design

High Capacity Ball Float Steam Trap

Nominal sizes

DN 80 – 200 mm

Pressure rating

PN16 bar, PN25 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 4,5 bar, 10 bar, 21 bar, 32 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 50000 kg/h

Connection

Flanged

Material

Carbon steel, Stainless steel

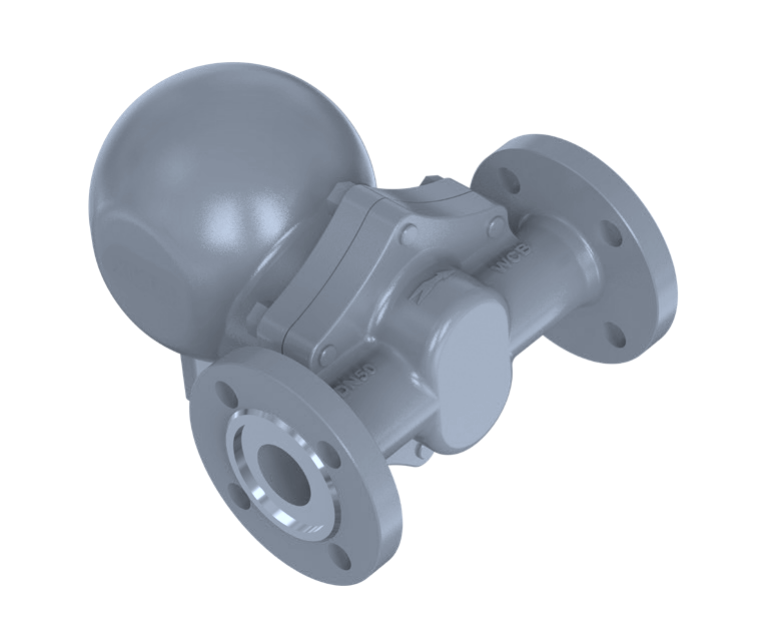

ST400.3 series by MATICA

Unmatched Capacity for Demanding Processes. For systems where performance is critical, LINDER delivers the MATICA ST400.3 High-Capacity Ball Float Steam Trap. This model is not just a component; it’s a solution for peak efficiency. It aggressively removes condensate, prevents energy waste, and eliminates water hammer risks under extreme conditions up to 64 bar and 400°C. […]

Design

High Capacity Ball Float Steam Trap

Nominal sizes

DN 40 – 80 mm

Pressure rating

PN64 bar, Class 300, Class 400

Differential pressure

ΔPMX 32 bar, 45 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 22000 kg/h

Connection

Flanged

Material

Carbon steel, Stainless steel

ST400.4 series by MATICA

Maximum Condensate. Maximum Efficiency. The High Capacity Ball Float Steam Trap MATICA ST400.4 is engineered for peak performance in demanding systems. It combines a thermostatic air vent and ball float for fully automatic, continuous condensate removal at pressures up to 100 bar and temperatures to +400°C. This ensures optimal heat transfer, prevents water hammer, and […]

Design

High Capacity Ball Float Steam Trap

Nominal sizes

DN 40 – 80 mm

Pressure rating

PN64 bar, PN100 bar, Class 300, Class 600

Differential pressure

ΔPMX 45 bar, 65 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 24500 kg/h

Connection

Flanged

Material

Carbon steel, Stainless steel

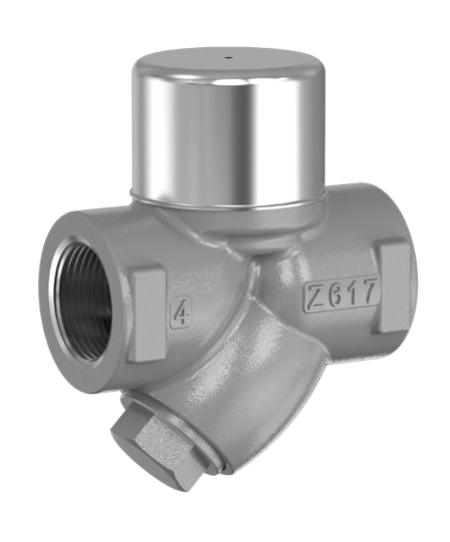

ST500 series by MATICA

Engineered to Dominate. Built to Save. Demanding steam systems require uncompromising solutions. Through LINDER, your official MATICA dealer, access the robust thermodynamic steam trap ST500 (DN15-DN65). Engineered to handle up to 40 bar and +400°C, it decisively eliminates condensate, slashing energy waste and shielding your critical assets. Choose the ST500 for relentless performance and tangible […]

Design

Thermodynamic Steam Trap

Nominal sizes

DN 15 – 65 mm

Pressure rating

PN16 bar, PN25 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 10 bar, 20 bar, 35 bar

Maximum operating temperature

TMO 250 ºC, 400 ºC

Discharge Capacities

DN15-25 ≤ 980 kg/h, DN32-50 ≤ 1490 kg/h,

Connection

Threaded, Socket weld, Flanged

Material

Cast Iron, Carbon Steel, Stainless Steel

ST500.1 series by MATICA

Engineered to Endure. Performs to Save. LINDER, as an official dealer of MATICA, presents the thermodynamic steam trap MATICA ST500.1. This model is engineered for maximum endurance and continuous drainage in demanding steam systems. Operating reliably at pressures up to 40 bar and temperatures up to +400°C, it directly protects your equipment and cuts energy […]

Design

Thermodynamic Steam Trap

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 35 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 600 kg/h

Connection

Threaded, Socket weld, Flanged

Material

Forging Carbon Steel, Stainless Steel

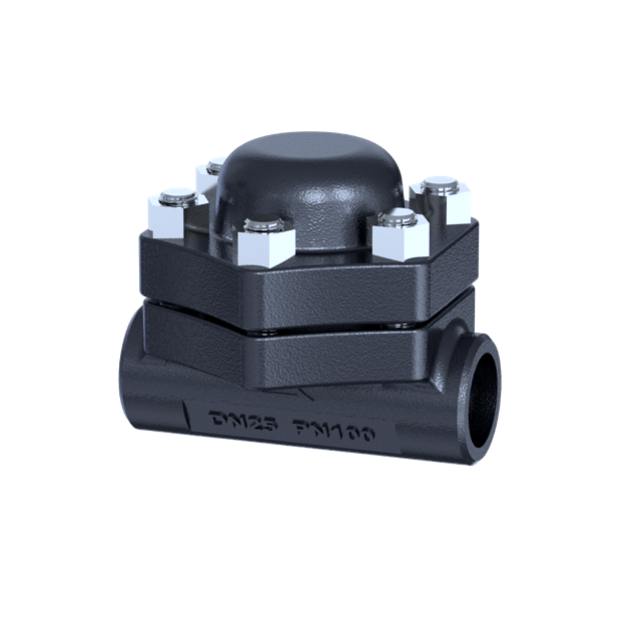

ST500.2 series by MATICA

Demand maximum performance from your steam system. Through LINDER, an official MATICA dealer, equip it with the ST500.2 Thermodynamic Steam Trap. This series is engineered to master extreme conditions (100 bar, +500°C), ensuring continuous operation that slashes energy waste and safeguards your critical infrastructure from damage. Applications Drying units, Press units, Steam jacket pipes, Irons Master […]

Design

Thermodynamic Steam Trap

Nominal sizes

DN 15 – 50 mm

Pressure rating

PN64 bar, PN100 bar, Class 600

Differential pressure

ΔPMX 65 bar

Maximum operating temperature

TMO 500 ºC

Discharge Capacities

DN15-25 ≤ 1050 kg/h, DN32-50 ≤ 1600 kg/h,

Connection

Threaded, Socket weld, Flanged

Material

Alloy Steel, Stainless Steel

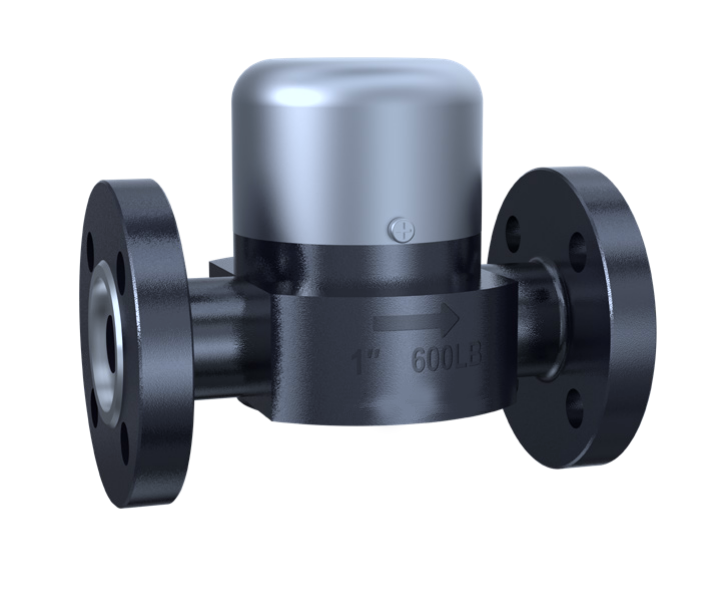

ST500.3 series by MATICA

Demand Peak Efficiency from Your Steam Lines. The MATICA ST500.3 thermodynamic trap is the definitive solution for reliable condensate discharge. It ensures maximum energy savings and unmatched protection for equipment under the most demanding pressures and temperatures. Trust the expertise of the official dealer LINDER for this superior model. Applications Drying units, Press units, Steam jacket pipes, Irons

Design

Thermodynamic Steam Trap

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN100 bar, PN160 bar, Class 600, Class 900

Differential pressure

ΔPMX 65 bar, 80 bar

Maximum operating temperature

TMO 550 ºC

Discharge Capacities

≤ 550 kg/h

Connection

Threaded, Socket weld, Flanged

Material

Alloy Steel, Stainless Steel

ST500.3S series by MATICA

Where Endurance Meets Efficiency. A superior series for critical steam lines, ensuring continuous moisture removal under extreme pressures and temperatures. Optimize your circuit’s performance and safety. Supplied by the official dealer LINDER. Applications Drying units, Press units, Steam jacket pipes, Irons

Design

Thermodynamic Steam Trap

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN250 bar, Class 1500

Differential pressure

ΔPMX 240 bar

Maximum operating temperature

TMO 550 ºC

Discharge Capacities

≤ 440 kg/h

Connection

Threaded, Socket weld, Flanged

Material

Alloy steel

ST600 series by MATICA

Command Your Steam System’s Efficiency. Available through MATICA dealer LINDER, the bimetal ST600 steam trap puts you in control. It doesn’t just remove condensate automatically — its unique tunable bimetal element allows you to precisely set the discharge temperature. This means direct command over energy efficiency and protection of your heat exchange equipment. Applications Trace […]

Design

Bi-Metallic Temperature Control Steam Traps

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN16 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 12 bar, 35 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 500 kg/h

Connection

Threaded, Socket weld, Flanged

Material

Forget carbon steel, Stainless steel

ST600.1 series by MATICA

Unmatched Endurance for Extreme Environments. As an authorized MATICA dealer, LINDER offers the ultimate solution for condensate drainage: the ST600.1 bimetallic steam trap. Engineered to conquer the most demanding conditions—withstanding pressures up to 40 bar and temperatures exceeding +400°C—the ST600.1 redefines reliability. Its robust bimetallic element ensures maintenance-free operation, setting a new performance standard that […]

Design

Bi-Metallic Steam Traps

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 12 bar, 35 bar

Maximum operating temperature

TMO 400 ºC

Discharge Capacities

≤ 900 kg/h

Connection

Threaded, Socket weld, Flanged

Material

Forget carbon steel, Stainless steel

ST600.2 series by MATICA

Unrivaled Endurance in Extreme Conditions. As a premier MATICA dealer, LINDER provides the definitive solution for condensate drainage: the ST600.2 bimetallic steam trap. This series defines reliability, utilizing a bimetallic element for robust, maintenance-free operation. It is engineered to master the most demanding environments with a capacity of up to 100 bar and +500°C, establishing […]

Design

Bi-Metallic Steam Traps

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN100 bar, Class 600

Differential pressure

ΔPMX 65 bar

Maximum operating temperature

TMO 500 ºC

Discharge Capacities

≤ 800 kg/h

Connection

Threaded, Socket weld, Flanged

Material

Alloy steel, Stainless steel

ST800 series by MATICA

Unmatched Reliability. Zero Compromise. Demanding steam systems require the ST800 trap. Its core innovation is a self-regulating free float – a single stainless steel sphere that guarantees continuous condensate removal and unparalleled durability by design, with no concentric wear. Built for zero maintenance and equipped with an integral air vent and filter. Get the MATICA […]

Design

Free Float Steam Trap

Nominal sizes

DN 15 – 100 mm

Pressure rating

PN16 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 4 bar, 12 bar, 25 bar

Maximum operating temperature

TMO 350 ºC

Discharge Capacities

DN15-25 ≤ 850 kg/h, DN32-50 ≤ 1460 kg/h, DN65-100 ≤ 5950 kg/h

Connection

Threaded, Flanged

Material

Carbon steel, Stainless steel

ST800.1 series by MATICA

Unrivaled Simplicity, Unmatched Durability. Demand peak performance from your steam system with the MATICA ST800.1. This robust free float trap delivers precise, continuous condensate removal under any load, thanks to its single moving part – a self-regulating stainless steel ball. Built to last with an integrated air vent and filter, it eliminates wear and maintenance. […]

Design

Free Float Steam Trap

Nominal sizes

DN 15 – 100 mm

Pressure rating

PN16 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 4 bar, 12 bar, 25 bar

Maximum operating temperature

TMO 350 ºC

Discharge Capacities

DN15-25 ≤ 850 kg/h, DN32-50 ≤ 1460 kg/h, DN65-100 ≤ 5950 kg/h

Connection

Threaded, Flanged

Material

Carbon steel, Stainless steel

ST900 series by MATICA

Smarter Steam. Maximum Economy. LINDER provides the MATICA ST900, a thermostatic capsule steam trap engineered for intelligent condensate management. By exploiting the temperature differential between steam and condensate, its internal capsule precisely controls discharge, maximizing energy savings and system protection. Choose the smart choice for your steam lines. Applications Heat exchangers, reactor kettles, vulcanizing pans, […]

Design

Thermostatic Steam Trap

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN16 bar, PN40 bar, Class 150, Class 300

Differential pressure

ΔPMX 21 bar

Maximum operating temperature

TMO 270 ºC

Discharge Capacities

≤ 520 kg/h

Connection

Threaded, Flanged

Material

Forging steel, Stainless steel

ST900.1 series by MATICA

The Intelligent Drain. Engineered by MATICA. LINDER, your MATICA dealer, presents the ST900.1 thermostatic capsule trap. This model masters condensate drainage through its precise phase-change technology. The capsule expands and contracts with thermal shifts, offering automatic, energy-conscious control for your steam system. Applications Heat exchangers, reactor kettles, vulcanizing pans, jacketed kettles, roller heat exchangers, cylinder […]

Design

Thermostatic Steam Trap

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN25 bar

Differential pressure

ΔPMX 21 bar

Maximum operating temperature

TMO 270 ºC

Discharge Capacities

≤ 520 kg/h

Connection

Threaded, Flanged

Material

Stainless steel

ST900.2 series by MATICA

Purity in Process. Precision in Performance. Official dealer LINDER presents the MATICA ST900.2: the definitive thermostatic capsule trap for demanding sanitary and food-grade steam systems. Its precision temperature-driven mechanism ensures pure, efficient condensate discharge, protecting your process and product integrity. Engineered for compliance and uncompromising cleanliness. Applications Demanding sanitary and food-grade steam systems, etc.

Design

Thermostatic Steam Trap

Nominal sizes

DN 15 – 25 mm

Pressure rating

PN10 bar

Differential pressure

ΔPMX 10 bar

Maximum operating temperature

TMO 170 ºC

Discharge Capacities

≤ 420 kg/h

Connection

clamp ferrules

Material

Stainless steel

ST900.3 series by MATICA

Precision Where It Counts: Dry Steam, Maximum Efficiency. The MATICA ST900.3 capsule-type thermostatic steam trap is engineered for direct and effective removal of condensate and non-condensable gases from steam lines. Its operation, assertively based on the temperature differential between steam and condensate, ensures that only cool condensate is released, preventing live steam loss. This results […]

Design

Thermostatic Steam Trap

Nominal sizes

DN 15 – 20 mm

Pressure rating

PN16 bar

Differential pressure

ΔPMX 13 bar

Maximum operating temperature

TMO 200 ºC

Discharge Capacities

≤ 1500 kg/h

Connection

Threaded

Material

Brass

VB300 series by MATICA

Defend Your System. Disrupt the Vacuum Essential for modern steam system integrity, the MATICA VB300 Vacuum Breaker acts as a first line of defense against vacuum-induced collapse and damage. Its simple yet highly effective design—a spring-assisted ball check valve in a durable stainless steel housing—guarantees immediate atmospheric air intake when pressure drops below safe limits. […]

Design

Vacuum Breakers

Nominal sizes

DN 15

Pressure rating

PN25 bar

Maximum operating temperature

TMO 425 ºC

Discharge Capacities

≤ 250 kg/h

Connection

Threaded

Material

Stainless steel
