Maximize Efficiency & Protect Your Investment: The MATICA ST200 Series Ball Float Steam Trap

In the demanding landscape of industrial steam systems, every component plays a pivotal role in ensuring operational integrity, energy conservation, and cost-effectiveness. At the forefront of condensate management technology stands the MATICA ST200 Series Ball Float Steam Trap, a masterpiece of engineering designed to deliver unmatched reliability and performance. As the official dealer of MATICA on the territory of Turkey, LINDER is proud to offer this superior solution to industries nationwide, empowering them to discharge condensate with precision and preserve vital energy.

Introducing the MATICA ST200: Engineered for Excellence

The core philosophy of the MATICA ST200 series is encapsulated in its mission: Discharge Condensate. Preserve Energy. This is not merely a function; it is a commitment to maximizing your entire system’s performance. By ensuring the rapid and efficient removal of condensate, the ST200 safeguards your valuable steam assets—including heat exchangers, tanks, and process equipment—from the damaging effects of water hammer, corrosion, and reduced heat transfer efficiency. When you choose the ST200 through LINDER, you are not just installing a steam trap; you are investing in the longevity and productivity of your steam plant.

Unrivaled Operational Efficiency for Critical Applications

The MATICA ST200 is engineered to excel in a wide array of applications where consistent temperature control and efficient heat transfer are non-negotiable. Its robust design makes it the ideal choice for:

• Heat Exchangers & Heating Batteries: Ensures optimal thermal conductivity by preventing condensate logging.
• Process Tanks, Pans & Drying Cylinders: Maintains stable temperatures for consistent product quality in food, paper, and chemical processing.
• Industrial Ovens & Kilns: Guarantees uniform heat distribution, crucial for manufacturing and treatment processes.

This versatility is made possible by its sophisticated thermostatic-pilot and float mechanism. Unlike simpler traps, this dual-action system ensures fast, efficient, and continuous condensate discharge under varying load conditions, adapting seamlessly to your process demands.

Technical Superiority: The Hallmarks of the ST200 Series

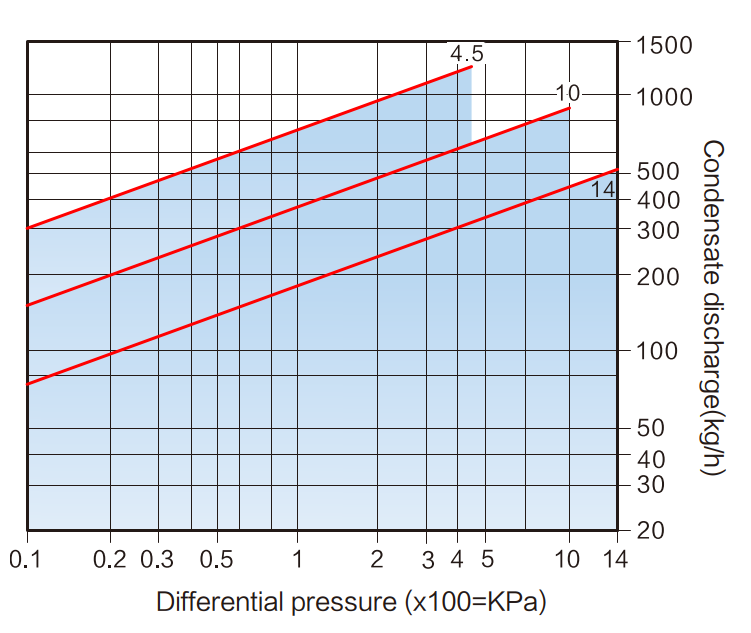

The MATICA ST200 is a Low Capacity Ball Float Steam Trap built to the highest standards. Available in nominal sizes from DN 15 to DN 25 mm, it accommodates diverse system layouts. It is designed to withstand rigorous industrial environments with pressure ratings up to PN40 bar (Class 300) and maximum operating temperatures soaring to 400°C. Its impressive differential pressure handling (ΔPMX up to 14 bar) and high discharge capacities (up to 1300 kg/h for DN25) ensure it can meet the demands of even the most challenging applications. Connection options include both threaded and flanged versions for easy integration into existing piping.

Robust Construction and Material Excellence

The durability of the MATICA ST200 is rooted in its premium material selection and meticulous construction, a guarantee provided through LINDER’s official supply chain in Turkey.

• Unmatched Core Strength: The trap body and cover are available in high-strength nodular cast iron GGG40, carbon steel GS-C25, or stainless steel CF8/CF8M, providing exceptional resistance to pressure and mechanical stress.
• Superior Sealing: A thermally expanded graphite gasket ensures a reliable, leak-free seal between the body and cover, even under extreme thermal cycling.
• Corrosion-Resistant Float Mechanism: The heart of the trap features a stainless steel float (AISI 304 or 316), precision-welded for integrity. This provides exceptional durability against hydraulic shock and corrosive condensate.
• Precision Discharge Valve: The main condensate discharge valve is crafted from hardened stainless steel (AISI 420 or 440C). Its spherically-sealed valve seat is engineered for tight shut-off and reliable operation.
• Intelligent Air Venting: The integrated, serviceable air vent assembly, constructed from specialized alloys, automatically expels air and non-condensable gases, dramatically accelerating system heat-up times and boosting overall operational efficiency.

Why Choose the MATICA ST200 Through LINDER in Turkey?

Selecting the MATICA ST200 series via LINDER, your authorized MATICA dealer, provides a comprehensive advantage:

• Guaranteed Authenticity & Quality: Receive genuine MATICA products with full manufacturer warranties, ensuring you benefit from the engineered quality and performance described.
• Local Technical Expertise & Support: LINDER’s team of engineers in Turkey provides expert selection guidance, application support, and after-sales service.
• Inventory & Logistics Efficiency: As the official Turkish dealer, LINDER maintains strategic stock, ensuring reliable availability and faster delivery times.
• Holistic System Optimization: We go beyond supply. Our experts can analyze your steam system to ensure the ST200 delivers the maximum return on investment through energy savings and equipment protection.

Invest in Precision. Partner with Authority.

The MATICA ST200 Series Ball Float Steam Trap represents the intelligent convergence of robust design, precision engineering, and energy-conscious operation. It is a critical component for any operation serious about reducing downtime, lowering energy costs, and protecting capital equipment.

For industries across Turkey seeking to optimize their steam systems, the path is clear. Partner with LINDER, the official dealer of MATICA, to specify and supply the reliable, high-performance ST200 series steam traps.
